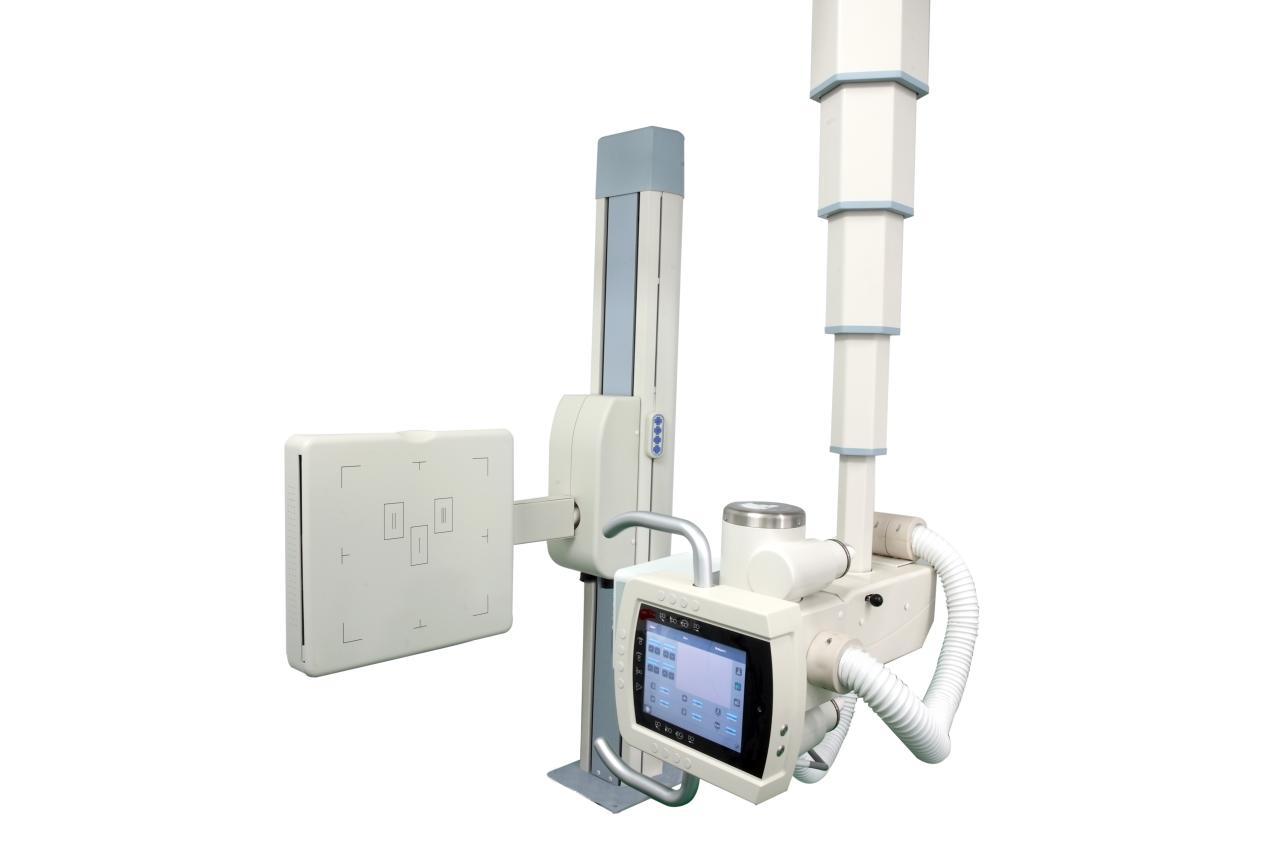

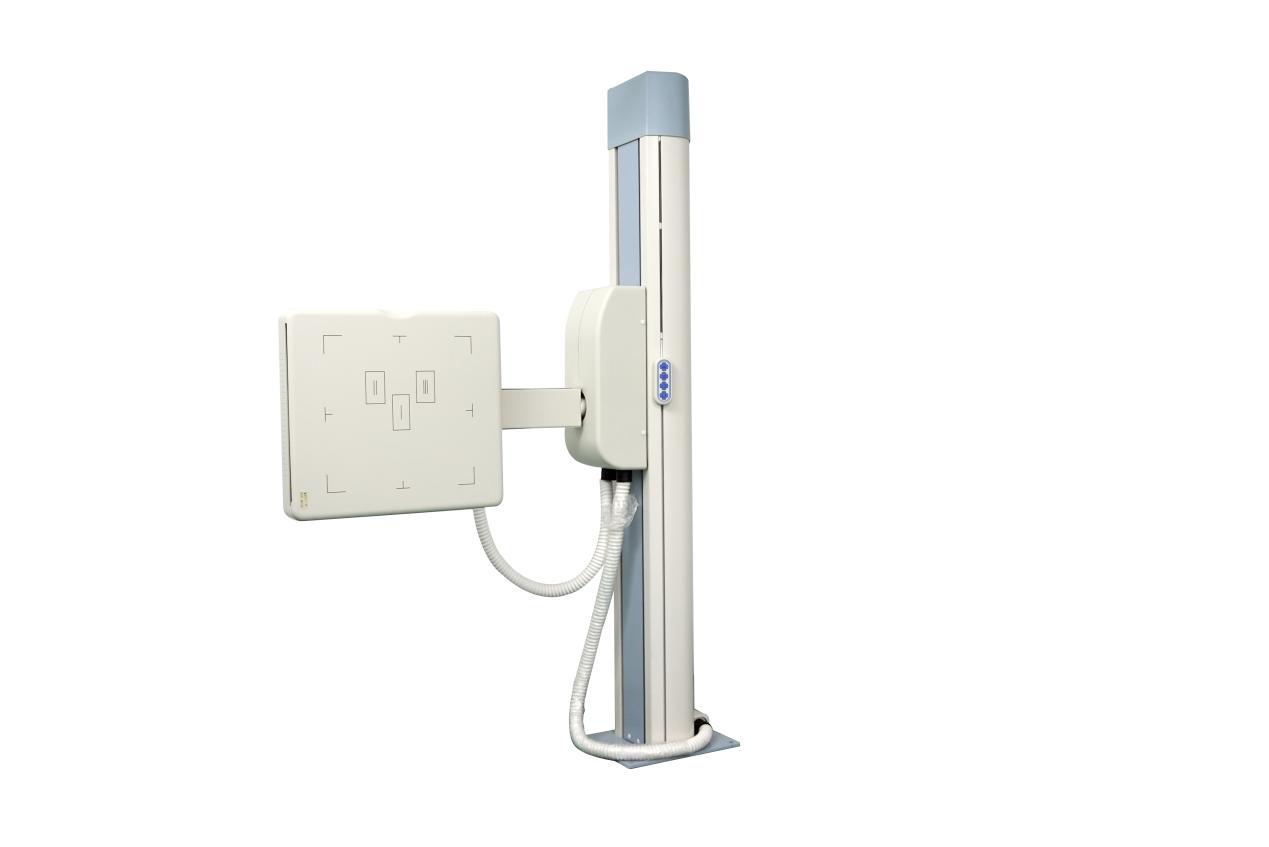

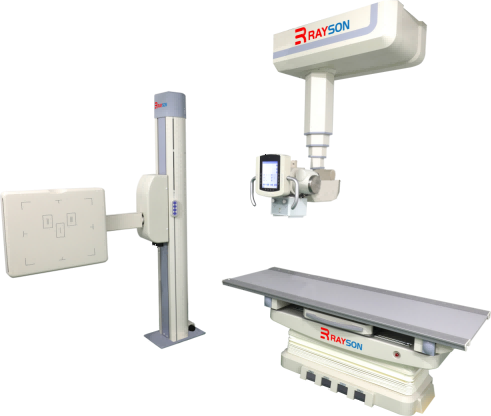

32kw Ceiling-mounted Digital Radiography System

Product Introduction
The ceiling-mounted digital X-ray radiography system is a high-end, fully automatic suspended X-ray device. It is used for routine radiography of patients to obtain single images for clinical diagnosis. It can perform X-ray imaging diagnosis of the human head, spine, chest, abdomen, extremities, and other body parts.
Performance Parameters

32kW high-performance rotary tube
9.7 inch advanced and intuitive touch screen

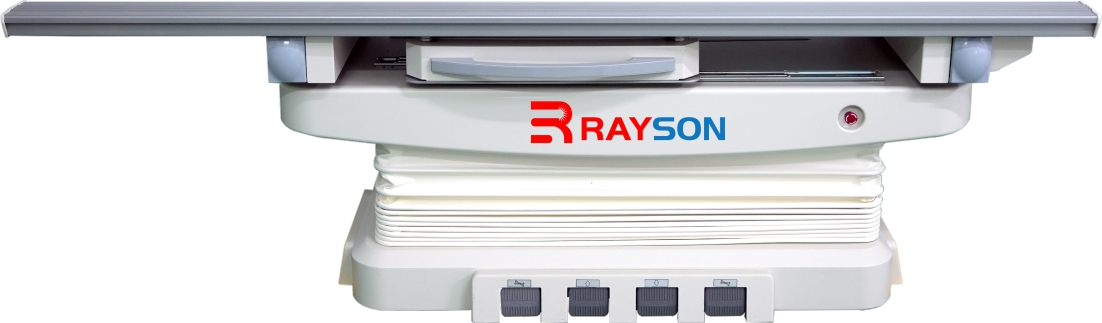

17 x 17inch high-resolution detectors with wireless function ·Liftable patient bed
Automatic tube tracking
One-key reset function
Multiple protection with self-detection
Better stability and longer service life

Core Advantages
Throughput
Exam automation technologies all help assure outstanding patient throughput.

Personalized User Presets
Offers technologists and radiologists the opportunity to personalize user settings to allow a smooth, patient-focused workflow with customizable presets and automation.

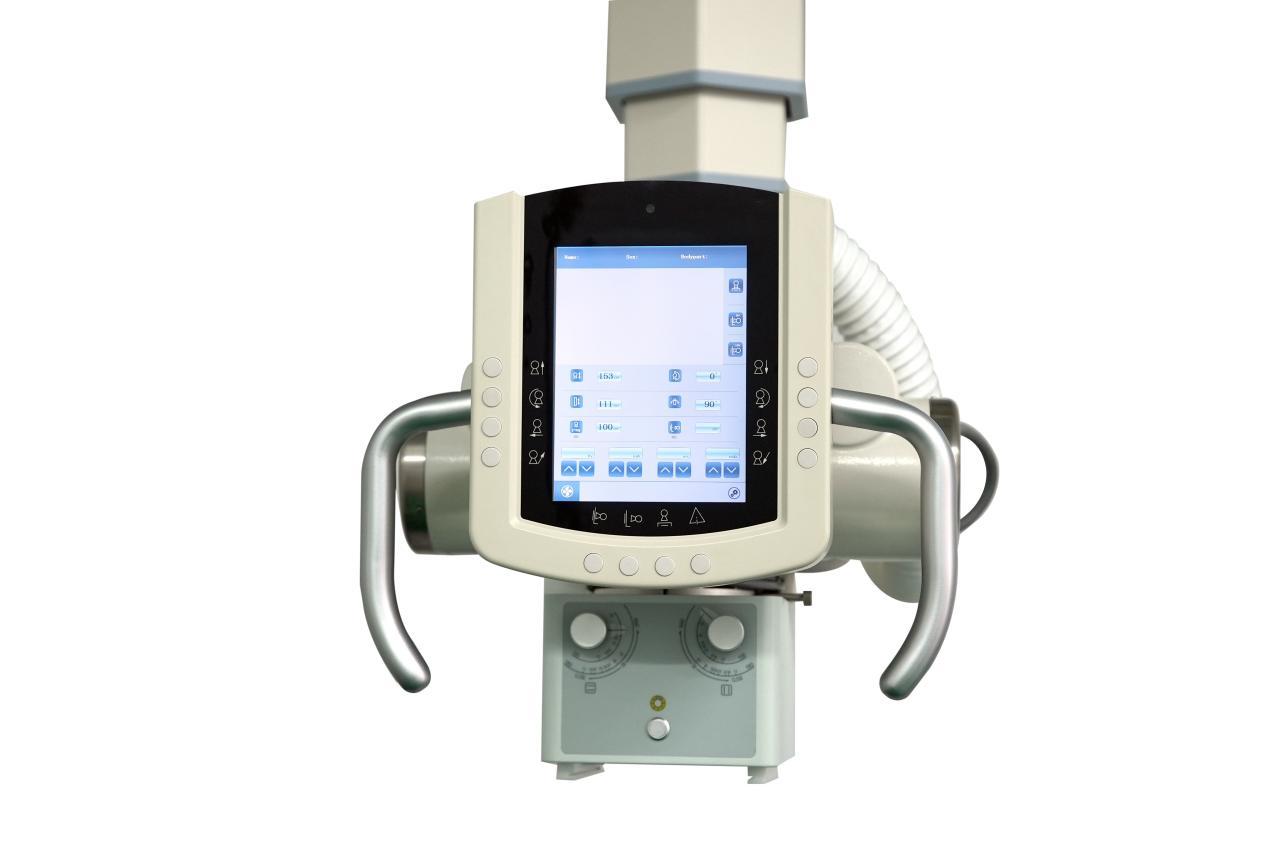

Touch Screen
The touch monitor allows technologists to work fast and with a minimum number of clicks.

Clear Image
Image processing software to provide superb images of all anatomical areas.

Wireless Detector
A 10-hour battery life supports detector to work stable and continuously.Wireless function reduces the limitation of cables and avoid problem caused by cable poor

Quick Capture
The dual flat panel detector enables rapid capture of mode and position (upright/supine/prone/decumbent) switching, significantly improving clinical efficiency.

Accessories

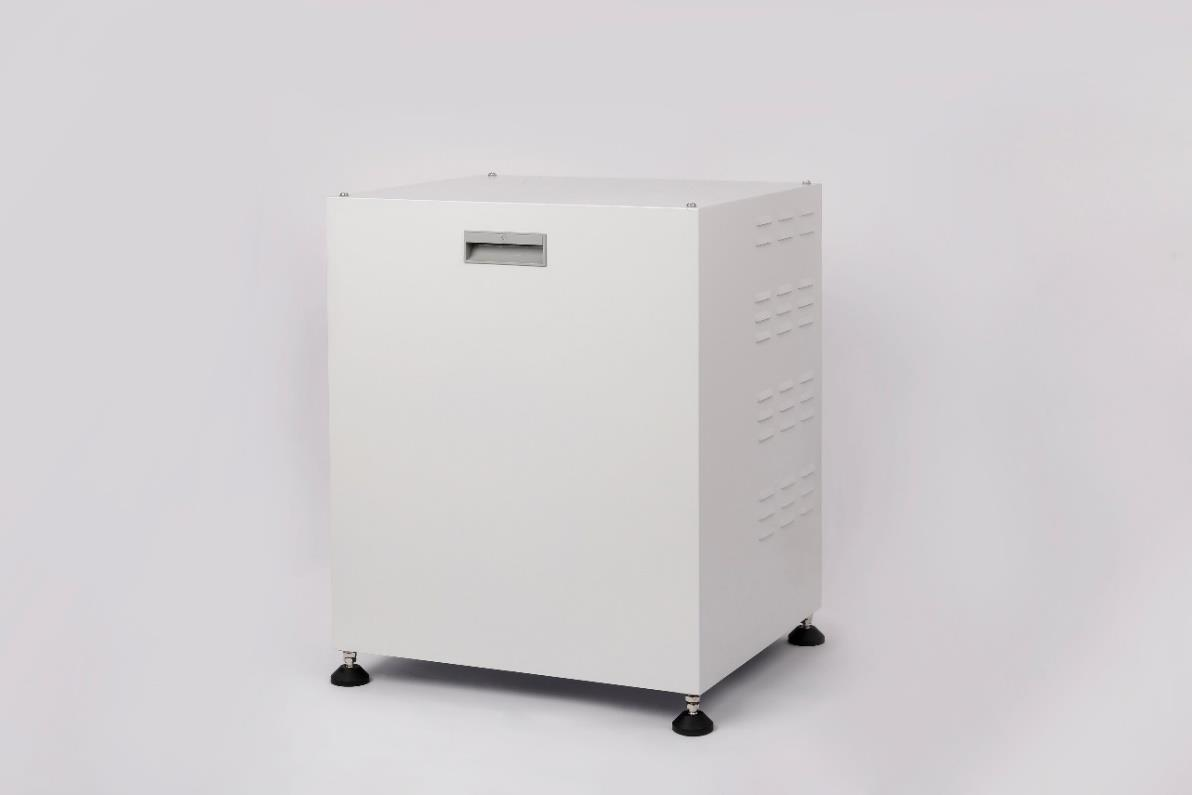

High Voltage Generator

  Industry-leading technology with sequential action self‑inspection; equipped with a 3‑loop PID control system, active clamping function and VCE
  monitoring technology.
  Intuitive and efficient UI operation.
  Output kV accuracy within 5%.
  X‑ray tube temperature switch protection to extend tube service life.

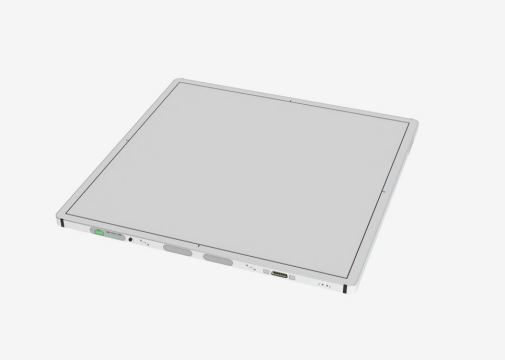

Flat panel detector

 A high performance,cassette-sized flat panel detector with both wireless functionalities.Battery stands by for at least 10 hours. supports  IEEE  802.11ac  with transmission  speed  up  to  1300Mbps.The detector acquires outstanding images with high DQE and high resolution.Equipped with highly sensitive AED function,the detector can be easily connected to and synchronized with any kind of generators.

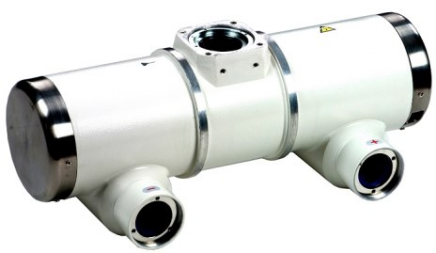

X-ray tube assembly

The X-ray tube installed in the housing is model XD51-22.47/125, featuring a pure tungsten-in-molybdenum target material treated with a special process, with a diameter of 74 millimeters. The focal spots of these tubes are 2.0 millimeters and 1.0 millimeters, and the maximum tube voltage can reach 125 kilovolts. It is equipped with a high-voltage cable socket compliant with the IEC 60526 standard.

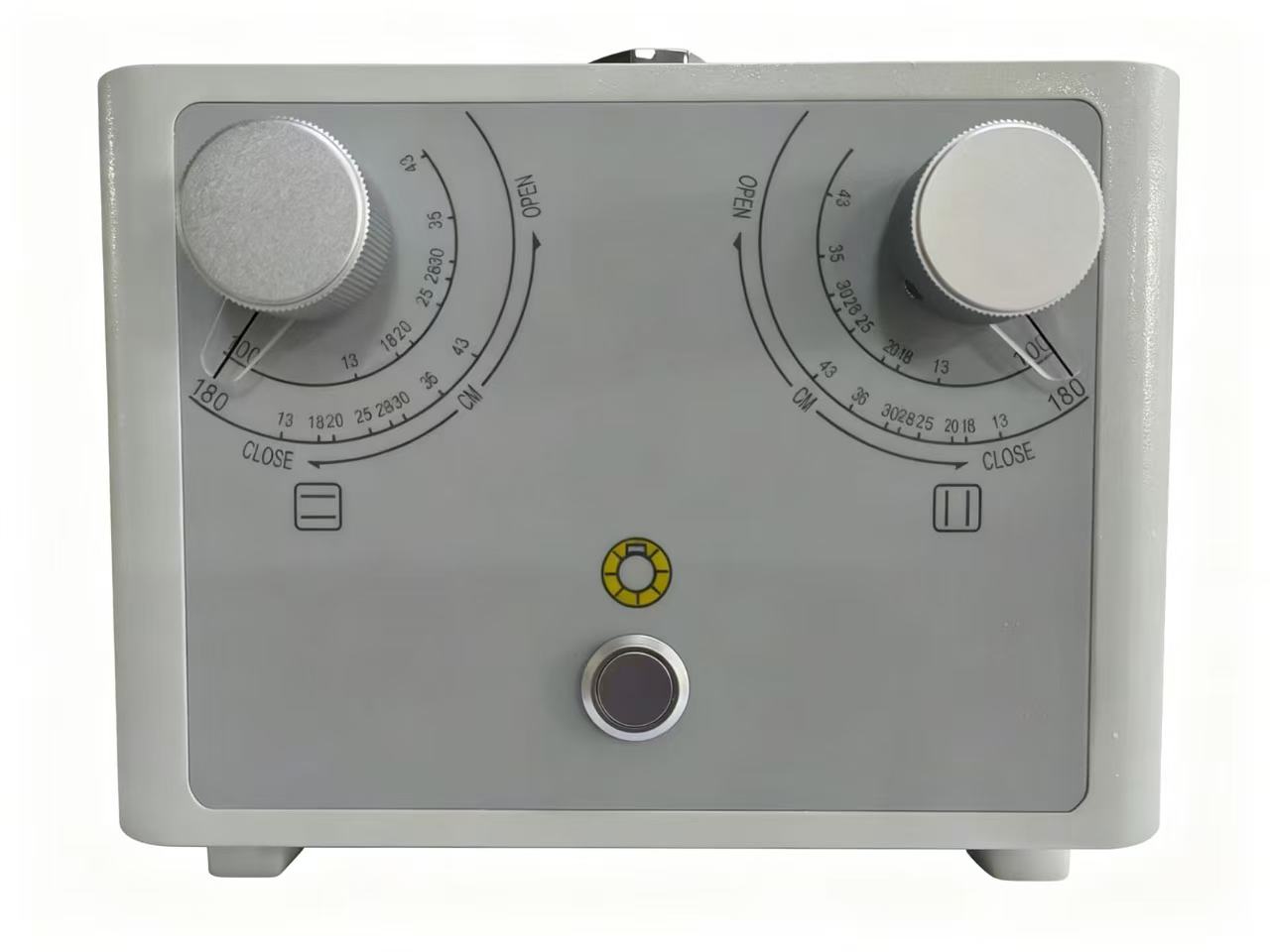

 Collimator

The exterior features subtle dark lines, a compact structure, and small dimensions.
The beam shifter rotates 360 degrees.
LED systems feature low power consumption, long lifespan, and high safety and reliability.
The leakage radiation shielding is below 0.5 mGy/h.
A laser light can be added to enhance the premium quality and competitiveness of the main product.
