32kW Floor-mounted Radiography System - x-ray machine manufacturers

Description

Product Introduction

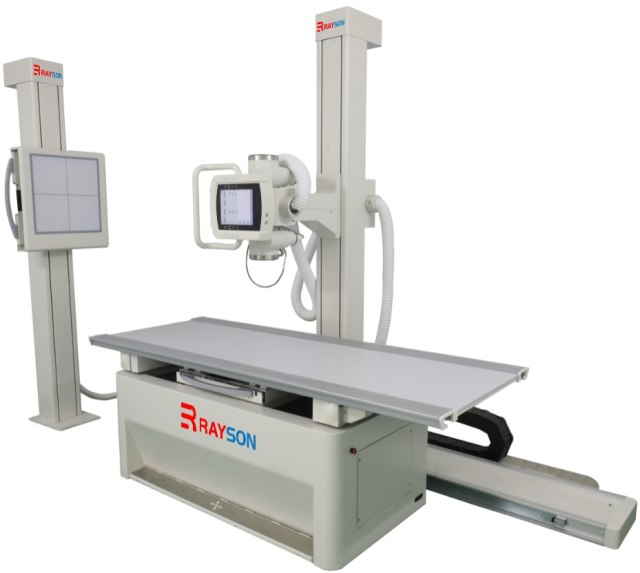

This digital X-ray radiography system is a fixed dual-column X-ray device. It is used for routine radiography of patients to obtain single images for clinical diagnosis. It can perform X-ray imaging diagnosis of the human head, spine, chest, abdomen, extremities, and other body parts.
Performence Parameters
32kW high-performance tube,360° Diagnostic View
Automatic tube tracking function
One Key Setup
Adaptive Image Intelligence
Smooth Report Management

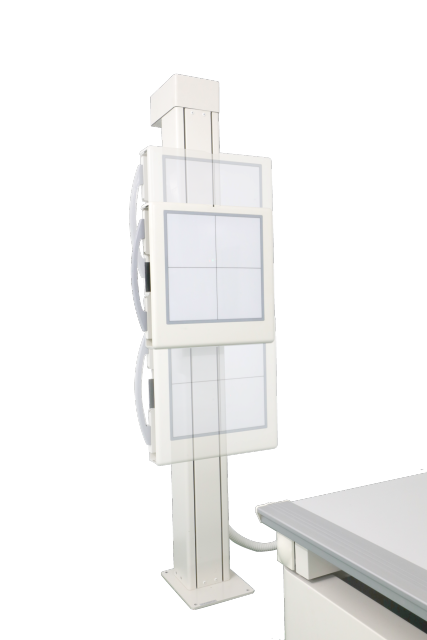

Dual 17 x 17inch high-resolution detector ，Convenient Detector Adaption
Core Advantages

Multiple Body Shapes Parameter Setup

Can setup exposure parameters for Child, Slim, Normal, Fat four types bodyshapes

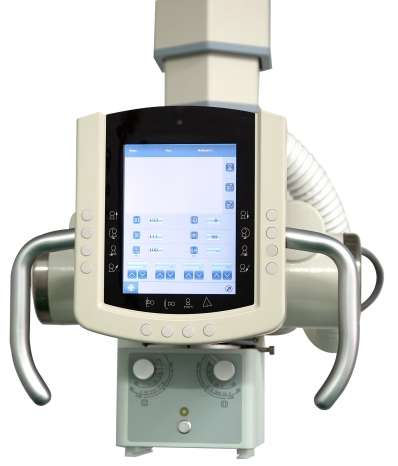

Tube And Column Are Mulit-Angle Rotatable

Available for shooting in different positioning scenes

Editable Report &Pacs Function

Image server management

Splicable Images

After taking pictures of the upper and lower parts, they can be stitched together into a large picture
Small image becomes big image, making the exam more exhaustive.

Can Setup One KeyTo Add Multi-Parts Exam Mode

When one group have the same examination package, can quickly add the parts that included in the examination package.

Optional Image Effectiveness

Smooth / Normal / Sharp

Accessories

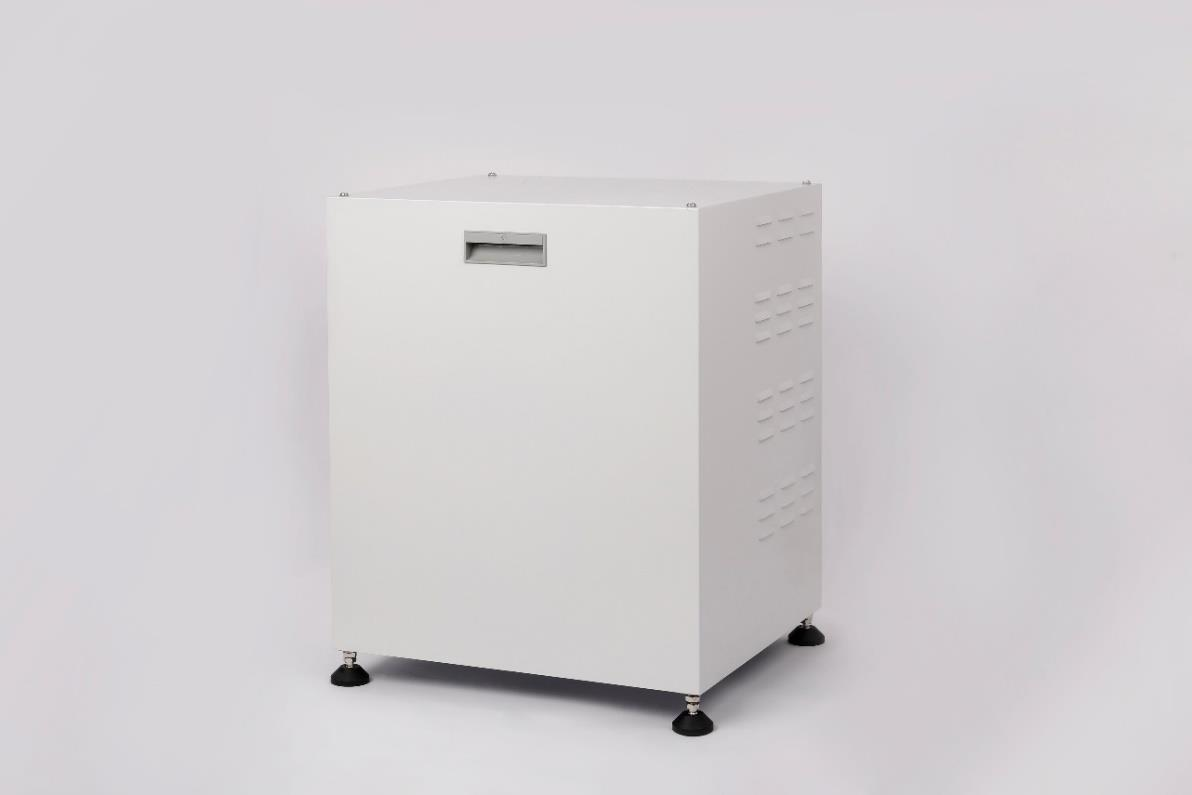

High Voltage Generator

Industry-leading technology with sequential action self‑inspection; equipped with a 3‑loop PID control system, active clamping function and VCE monitoring technology.
Intuitive and efficient UI operation.
Output kV accuracy within 5%.
X‑ray tube temperature switch protection to extend tube service life.

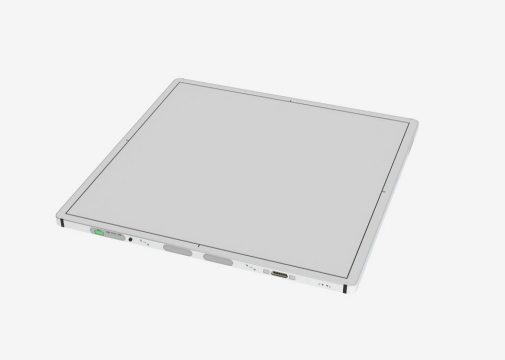

Flat panel detector

A high performance,cassette-sized flat panel detector with both wireless functionalities.Battery stands by for at least 10 hours. supports IEEE 802.11ac with transmission speed up to 1300Mbps.The detector acquires outstanding images with high DQE and high resolution.Equipped with highly sensitive AED function,the detector can be easily connected to and synchronized with any kind of generators.

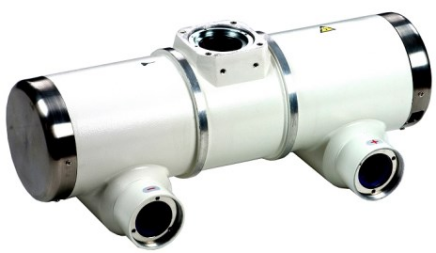

X-ray tube assembly

The X-ray tube installed in the housing is model XD51-22.47/125, featuring a pure tungsten-in-molybdenum target material treated with a special process, with a diameter of 74 millimeters. The focal spots of these tubes are 2.0 millimeters and 1.0 millimeters, and the maximum tube voltage can reach 125 kilovolts. It is equipped with a high-voltage cable socket compliant with the IEC 60526 standard.

Collimator

The exterior features subtle dark lines, a compact structure, and small dimensions.
The beam shifter rotates 360 degrees.
LED systems feature low power consumption, long lifespan, and high safety and reliability.
The leakage radiation shielding is below 0.5 mGy/h.
A laser light can be added to enhance the premium quality and competitiveness of the main product.

FAQ

What features distinguish your 32kW floor-mounted radiography system?

Our system features a 32kW high-performance X-ray tube with dual focal spots, 360° automatic tube tracking, and dual 17x17 inch wireless detectors. It supports adaptive imaging intelligence and is designed for versatile diagnostic applications, ensuring reliable performance from a trusted x ray equipment manufacturer.

Can the 32kW radiography system be configured for different patient types?

Yes. The system offers multiple body shape parameter setups, including Child, Slim, Normal, and Fat, to help optimize exposure parameters for different patients. As an experienced x ray machine supplier, we focus on adaptable solutions for clinical imaging needs.

What connectivity options are available for your digital X-ray system?

Our system supports image server management and integration with reporting systems and PACS. Wireless flat-panel detectors use IEEE 802.11ac connectivity at speeds up to 1300 Mbps, helping medical facilities improve image transfer and workflow efficiency.

What information is provided for installation and daily operation?

We provide clear product specifications, installation references, operation workflow details, and PACS connection guidance to help medical facilities understand system setup, image acquisition, and daily use before project confirmation.
